Doteck DP1 Series

Datasheet

Doteck DP1 Series HD Video Stream Pulling Decoder

Features

Embedded web server, support unified configuration management after remote web page login

High stability, embedded design, low power consumption

Ultra low delay decoding, decoding code delay less than 300ms

Support input protocol:UDP, RTP, RTSP, RTMP, HTTP, SRT and so on

Rich output interface, support SDI, HDMI, CVBS, analog audio and AES/EBU audio output

Support H.264/AVC, MPEG-2, H.265/HEVC video format decoding standard

Support MP2, MP3, AAC, AC3, E-AC3 and other audio decoding standard

Support 1080p, 1080i, 720p, 576i, 480i resolution output

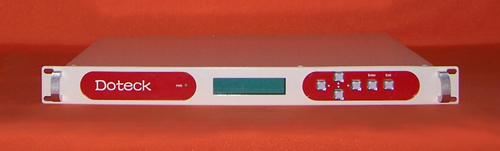

Support LCD display, front panel button operation

PCB boards made with multilayer design, to ensure stable and reliable signal transmission

All components, including connectors, are ordered from public-known manufacturers in the world, high stability and reliability ensurance

Enclosure box material is made of aluminum, elegant appearance, and light weight

Dual switching power supply design, wide voltage range, reliable long-term running

Introduction

Doteck DP1 series HD video stream pulling decoder adopts standard 1U case structure, adopts the most advanced full hardware decoding core, it can decode H.264/AVC, MPEG-2, H.265/HEVC and other mainstream video compression standard stream. Under the harsh conditions of low network bandwidth, it also has excellent video and audio fault tolerant capacity. It can adapt to various complex network audio and video application environments and supports multiple protocol input: UDP, RTP, RTSP, RTMP, HTTP, SRT, etc..

Technical Specifications

IP stream input

Input interface	RJ45
Rate	1000Mbps
Stream protocol	UDP, RTP, RTSP, RTMP, HTTP, SRT
Channel	One IP stream
Video format	H.264/AVC, MPEG-2, H.265/HEVC
Audio format	MP2, MP3, AAC, AC3, E-AC3

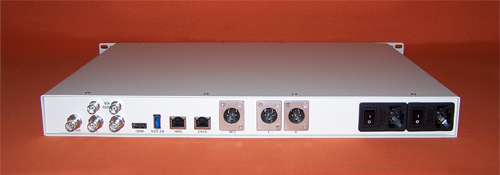

Output

SDI	DVB standard, BNC 75Ω
HDMI	HDMI 1.3
CVBS	BNC 75Ω
Analog audio	XLR (balanced) 600Ω, audio BNC (unbalanced) 75Ω
AES digital audio	XLR (balanced) 110Ω
Resolution	1080p, 1080i, 720p, 576i, 480i

Control

Management	Web-based remote network management software
Management interface	RJ45(100M)
LCD display	1
Operation buttons	6

Physical

Dimension(H×W×D, mm)	44×433×343(mm)
Operation temperature	0-50℃
Relative humidity	0-95%,non-condensing
Power supply	130-260VAC,50/60Hz
