 Industrial grade 19 inch 1U standard equipment with built-in dual power supply |
| Web-based remote network management software |
| Support H.265/HEVC, H.264/AVC, AVS, AVS+, AVS2 (optional) encoding |
| Support MPEG-1 layer 2, MPEG-1 layer 3, LC-AAC, HE-AAC, AC3, EAC3 audio encoding format |
| Support three video capture methods: 1-channel 12G-SDI, or 2-channel 6G-SDI, or 4-channel 3G/HD/SD-SDI |
| Support SDI resolution of 2160p, 1080p, 1080i, 720p, 576i, 480i input |
| Support SPTS, MPTS over UDP, FLV over RTMP, HLS over HTTP transmission stream IP input |
| Support UDP, RTP, RTSP, RTMP, HTTP, SRT network protocol output |
| Support the output video stream delay settings, delay time 0-120 seconds custom |
| Support internal multiplexer, which can multiplex SPTS program stream after multiplexing and transcoding into MPTS program stream |
| Support two gigabit ethernet ports, can be flexible configuration of IP program input and output physical channels |
| Support 10bit HDR |
| Support picture, caption overlay, multi-screen splicing and other software functions customization |
| Support main and standby signal switching function |
| Support GOP length, GOP structure and bit rate control buffer settings |
| Support CBR, VBR rate control mode |
| Stable operation of the equipment, supporting 7x24 hours uninterrupted work |

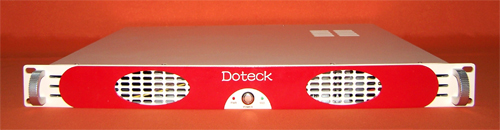

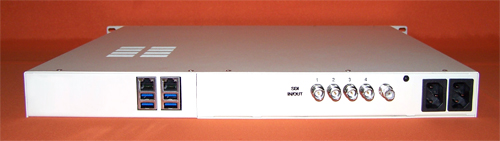

| Doteck R4 series 4K UHD H.265 encoder and transcoder adopts standard 1U chassis structure, is a high quality broadcast audio and video real-time encoder transcoder product. This product not only has the traditional H.264/AVC video encoding ability, but also supports international video standard H.265/HEVC and China's independent intellectual property rights video standard AVS+, AVS, AVS2 (optional) encoding format. |
| Doteck R4 series 4K UHD H.265 encoder and transcoder can compress 1-channel 12G-SDI, or 2-channel 6G-SDI, or 4-channel 3G/HD/SD-SDI digital videos into any of the above video encoding formats in real-time through the encoding module, and can also convert 1-channel 4K IP input stream, or 8-channel HD IP input stream, or 24-channel SD IP input stream into any of the above video encoding formats in real-time. |
SDI signal format |
12G/6G/3G/HD/SD-SDI |
Channel |
1-channel 12G-SDI, or 2-channel 6G-SDI, or 4-channel 3G/HD/SD-SDI |
Resolution |
2160p60/50/30/25
1080p60/50/30/25
1080i60/50
720p60/50/30
576p25, 480p30
576i50, 480i60 |
Interface |
BNC 75Ω |
Video encoding format |
H.265/HEVC, H.264/AVC, AVS+, AVS, AVS2 (optional) |
Bit rate |
1.0Mbps~200.0Mbps |
Rate control |
CBR, VBR |
Video pretreatment |
De-interleaving |
Audio encoding format |
MPEG-1 layer 2, MPEG-1 layer 3, LC-AAC, HE-AAC, AC3, EAC3 |
Sampling rate |
48KHz, 44.1KHz, 32KHz |
Channel |
Mono, stereo, 5.1, 7.1 surrounding stereo sound |
Bit rate |
64Kbps-1024Kbps |
Input interface |
RJ45 |
Rate |
1000Mbps |
Stream encoding format |
H.265/HEVC, H.264/AVC, AVS, AVS+, AVS2 (optional) |
Network protocol |
UDP, RTP, RTSP, RTMP, HTTP, SRT |
Transport stream format |
SPTS, MPTS, FLV, HLS |
Output interface |
RJ45 |
Rate |
1000Mbps |
Stream encoding format |
H.265/HEVC, H.264/AVC, AVS, AVS+, AVS2 (optional) |
Network protocol |
UDP, RTP, RTSP, RTMP, HTTP, SRT |
Transport stream format |
SPTS, MPTS, FLV, HLS |
Management |
Web-based remote network management software |
Dimension(H×W×D, mm) |
44×433×498(mm) |
Operation temperature |
0-50℃ |
Relative humidity |
0-95%, non-condensing |
Power supply |
130-260VAC, 50/60Hz |
|
